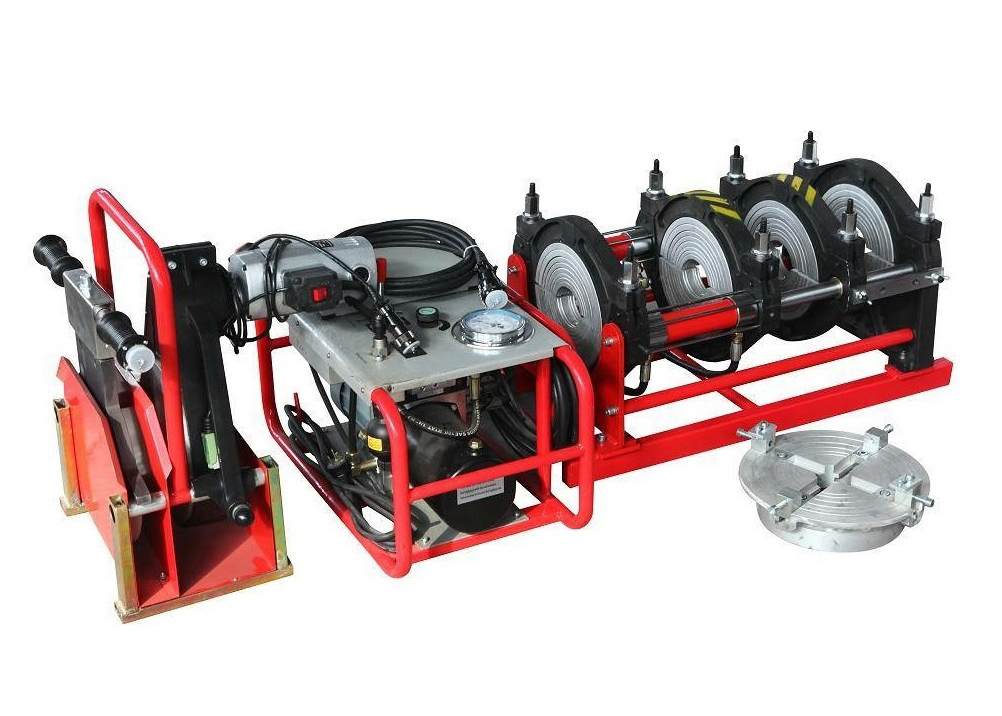

Hydraulic Butt Fusion Welding Machine SHD 250
For pipe : 3-10 inch
Technical Parameter :
| SHD 250 | ||
|---|---|---|
| Pipe Size (mm) | 90,110,125, 140,160,180, 200,225,250 | |
| Heating Plate max. Temp. | 270˚C | |
| Temp Deviation is surface (170~150˚C) | < ±7˚ C | |
| Pressure adjustable ranges | 0-6.3 Mpa | |
| Work Voltage | 220 V , 50 Hz | |
| Heating Plate power | 3 KW | |
| Planing tool power | 1.1 KW | |
| Hydraulic unit power | 0.75 KW | |
| Total power | 4.85 KW | |
| Weight | 201 KG | |
| packing | Cases | 3 Plywood Cases |
| Volume | 0,70 CBM | |
