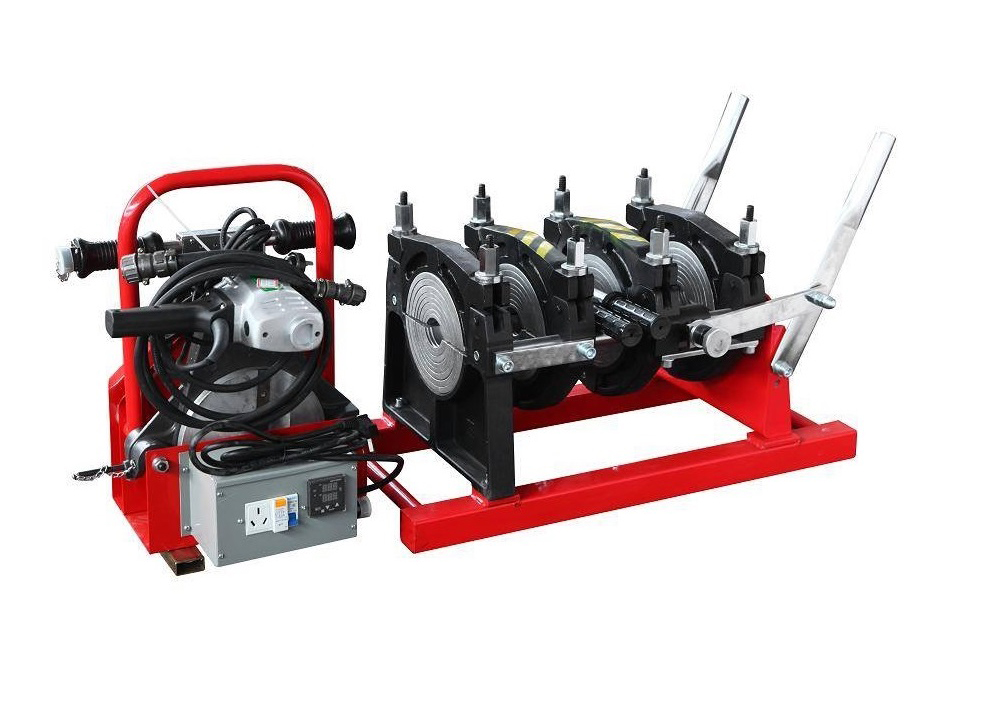

Manual Butt Fusion Welding Machine SHDS 200 4 Clamp
For pipe : 2-8 inch
Technical Parameter :
| SHD 250 | ||
|---|---|---|
| Pipe Size (mm) | 63,75,90, 110,125,140, 160,180,200 | |
| Heating Plate max. Temp. | 270˚C | |
| Temp Deviation is surface (170~250˚C) | < ±5˚ C | |
| Pressure adjustable ranges | 0-6.3 Mpa | |
| Work Voltage | 220 V , 50 Hz | |
| Heating Plate power | 1.5 KW | |
| Planing tool power | 0.7 KW | |
| Total power | 2.2 KW | |
| Weight | 106 KG | |
| packing | Cases | 2 Plywood Cases |
| Volume | 0,44 CBM | |
