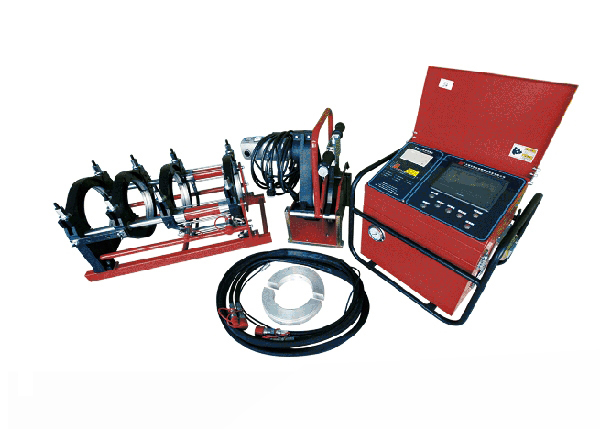

| Nama Produk | : | QZD-GZ160/250/315/355 | |
| Harga | : | - | |
| Description : |
|||
| QZD GZ160 | ||
|---|---|---|
| Welding scope (mm) | 90,125,110,160 | |
| The highest temperature heating plate | 270˚C | |
| The heating plate surface temperature difference (170~250˚C) | < ±5˚ C | |
| Pressure regulating range | 0.4 - 6 Mpa | |
| Working voltage | 220V 50Hz | |
| The heating plate power | 1 KW | |
| Milling power | 0.7 KW | |
| Hydraulic total power | 0.75 KW | |
| The total power | 2.45kW | |
| QZD GZ250 | ||
|---|---|---|
| Welding scope (mm) | 90,110,160,200,250 | |
| The highest temperature heating plate | 270˚C | |
| The heating plate surface temperature difference (170~250˚C) | < ±5˚ C | |
| Pressure regulating range | 0.4 - 6 Mpa | |
| Working voltage | 220V 50Hz | |
| The heating plate power | 2 KW | |
| Milling power | 1.1 KW | |
| Hydraulic total power | 0.75 KW | |
| The total power | 3.85kW | |
| QZD GZ315 | ||
|---|---|---|
| Welding scope (mm) | 110,160,200,250,315 | |
| The highest temperature heating plate | 270˚C | |
| The heating plate surface temperature difference (170~250˚C) | < ±5˚ C | |
| Pressure regulating range | 0.4 - 6 Mpa | |
| Working voltage | 220V 50Hz | |
| The heating plate power | 3 KW | |
| Milling power | 1.1 KW | |
| Hydraulic total power | 0.75 KW | |
| The total power |
4.85kW |
|
| QZD GZ355 | ||
|---|---|---|
| Welding scope (mm) | 160,200,250,315,355 | |
| The highest temperature heating plate | 270˚C | |
| The heating plate surface temperature difference (170~250˚C) | < ±5˚ C | |
| Pressure regulating range | 0.4 - 6 Mpa | |
| Working voltage | 220V 50Hz | |
| The heating plate power | 4 KW | |
| Milling power | 1.1 KW | |
| Hydraulic total power | 0.75 KW | |
| The total power |
5.85kW |
|
