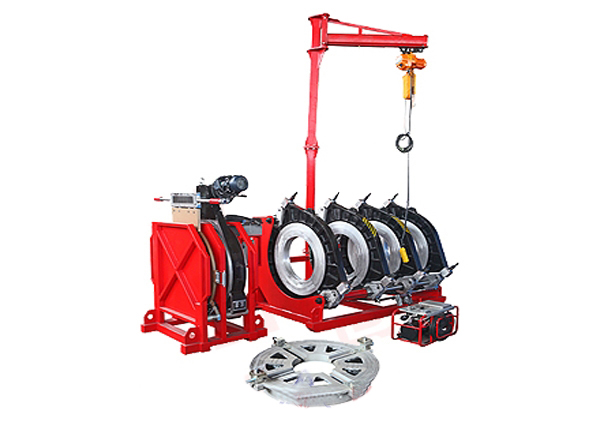

SHD 800-1000-1200

Nama Produk : SHD 800-1000-1200
Harga : -
Description
  • Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF material.
  • Consists of basic frame, hydraulic unit, planing tool, heating plate, basket & optional parts.
  • Removable PTFE coated heating plate with high accurate temperature control system.
  • Electrical planing tool.
  • Reliable structure design, suitable for multi-jobsites.
  • Changeable welding position enables to weld various fittings more easily.
  • High accurate and shockproof pressure meter.
  • Separate two-channel timer records time in soaking and cooling phases.

SHD 800
Welding scope (mm) 450,500,560,630.710,800
The highest temperature heating plate 270˚C
Temperature of 170 ~ 250  heating plate surface < ±7˚ C
Pressure regulating range (Mpa) 0 - 12
Working voltage(V) 380V
The heating plate power (kW) 12.5
Milling power (kW) 2.2
Hydraulic power station (kW) 3
The lifting power (kW) 0.5
The total power (kW) 18.2

SHD 1000
Welding scope (mm) 630,710,800,900,1000
The highest temperature heating plate 270˚C
Temperature of 170 ~ 250  heating plate surface < ±7˚ C
Pressure regulating range (Mpa) 0 - 16
Working voltage(V) 380V
The heating plate power (kW) 17.5
Milling power (kW) 3
Hydraulic power station (kW) 3
The lifting power (kW) 0.5
The total power (kW) 24

SHD 1200
Welding scope (mm) 800,900,1000,1200
The highest temperature heating plate 270˚C
Temperature of 170 ~ 250  heating plate surface < ±7˚ C
Pressure regulating range (Mpa) 0 - 16
Working voltage(V) 380V
The heating plate power (kW) 21.5
Milling power (kW) 4
Hydraulic power station (kW) 3
The lifting power (kW) 1
The total power (kW) 29.5
