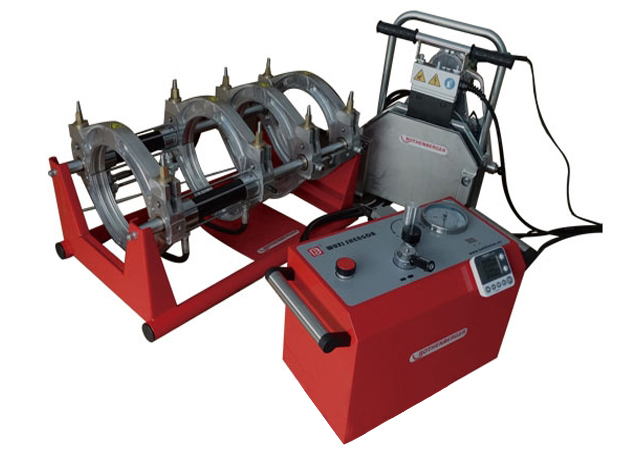

SHD160 II - 250 II - 315 II - 355 II

Nama Produk : SHD160 II - 250 II - 315 II - 355 II
Harga : -
Description

  • Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF material.
  • The latest design for basic frame, hydraulic unit, planning tool, heating plate of the second generation machine.
  • Integrated oil-way design of hydraulic system, simple structure, small and delicate, user friendly.
  • Simple design of electrical control system with high stability and reliability.
  • Sealed design of the control box with dustproof and waterproof.
  • Low starting pressure ensures reliable welding quality of small pipes.
  • Meter with high shockproof pressure, the big face of meter indicates clearer readings.
SHD160 II
Welding scope (mm) 63,75,90,110, 125,140,160
The highest temperature heating plate 270˚C
The heating plate surface temperature difference (170~250˚C) < ±5˚ C
Pressure regulating range 0 - 7 Mpa
Working voltage 220V 50Hz
The heating plate power 1 KW
Milling power 0.7 KW
Hydraulic total power 0.75 KW
The total power 2.45kW

SHD 250 II
Welding scope (mm) 63,75,90, 110,125,140, 160,180,200, 225,250
The highest temperature heating plate 270˚C
The heating plate surface temperature difference (170~250˚C) < ±5˚ C
Pressure regulating range 0 - 7 Mpa
Working voltage 220V 50Hz
The heating plate power 2 KW
Milling power 1.1 KW
Hydraulic total power 0.75 KW
The total power 3.85kW

SHD 315 II
Welding scope (mm) 90,110,125, 140,160,180, 200,225,250, 280,315
The highest temperature heating plate 270˚C
The heating plate surface temperature difference (170~250˚C) < ±5˚ C
Pressure regulating range 0 - 7 Mpa
Working voltage 220V 50Hz
The heating plate power 3 KW
Milling power 1.1 KW
Hydraulic total power 0.75 KW
The total power

4.85kW

SHD 355 II
Welding scope (mm) 90,110,125, 140,160,180, 200,225,250, 280,315,355
The highest temperature heating plate 270˚C
The heating plate surface temperature difference (170~250˚C) < ±5˚ C
Pressure regulating range 0 - 7 Mpa
Working voltage 220V 50Hz
The heating plate power 4 KW
Milling power 1.1 KW
Hydraulic total power 0.75 KW
The total power

5.85kW
